My manual only shows parts, no instructions at all except for lubrication. Note, in the lower gearbox, the oil pump sticks out, you will see it when you open the door, it has a filter behind the screwed-in bung. When the spindle is started there is a whining noise from the gearbox, not too loud. My lathe, when idling, makes some noise, the motor is turning the input shaft of the gearbox all the time. Lots of stuff in there, needle bearings, clutch packs etc. Don't be in a hurry to dismantle unless you are pretty happy with such a job ie bearings pressed onto shafts, need for absolute cleanliness etc. Dan, Noise in gearbox.Ĭheck to see you have the motor turning in the right direction, when you lift the hand control, the spindle should rotate in the normal direction.
#Graziano Sag 14 Manual how to#
Does the manual show how to take the trans apart? Thanks for your help-Dan.
#Graziano Sag 14 Manual plus#
Any thoughts on this? I also removed the head stock cover and check the gears, they look great plus I turned it on and watch the oil pump, COOL!!! I going to drain, flush and clean out the head stock case and refill with a good oil. It looks like I can take off the 4 bolts that hold the trans in the base and pull the trans and motor together. The lathe has a very bad paint job on it and I will have to repaint it to get it looking the way I want. Spindle is quiet, but the lower trans is a bit too loud.
Now, where was I? A manual, I've got one, if you can't find something closer to home, let me know.Ĭheck out Tony for interesting Graziano stuff.

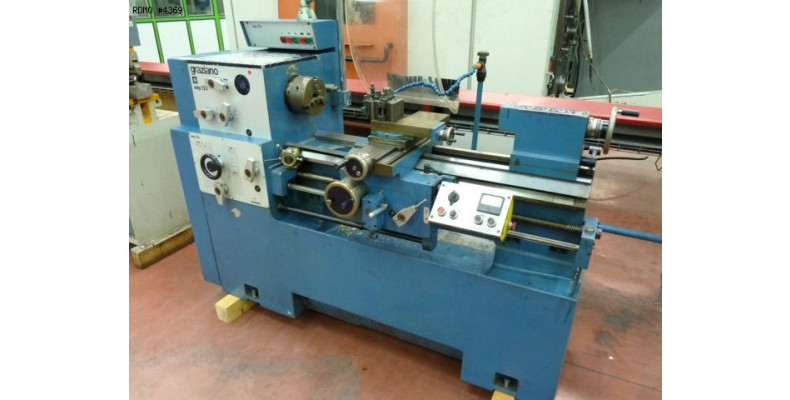

(Note, Graziano later made a Sag 12'S' with Reeves drive, maybe the electric change gearbox of the Sag 12 was too expensive to build)? Another good idea, it has holes in the bed casting that allow you to stick a length of round steel through at each end of the lathe, and so sling the lathe easily without doing any damage. The headstock has its own oil pump keeping the Gamet bearings happy, and the main speed change gearbox is seperate, it has its own oil pump too. The tailstock ways stop well short of the spindle, so you have a natural gap-bed effect - a lathe which swings 6' over the crosslide can also swing 17' in the permanent 'gap'.Īre they well built? I took my carriage to bits for a look - what a beauty! Fine engineering throughout. This means the main ways can be well covered from above. This is because the tailstock has its own ways, they are a lot higher than the carriage ways. Well, the vee ways are covered, so no chips can get to them. By switching off one clutch and switching on another you get instant on-the-fly speed change.Īnd another two magnetic clutches for forward and reverse. This is because the gearbox has four magnetic clutches, each attached to a constant-mesh gear. In the space of a second you can change speed four times, and change direction too if you want. Speed change is instant, just a little twist, and it immeadiately jumps to the speed you've clicked to. Why are they fun to use? Because spindle speed, direction and on/off are all controlled by one 'joy stick' on the right hand of the saddle. Please visit for more information.ĭan, In my possibly biased opinion, a very good lathe, fun to use and well designed and built. This Graziano 14' x 40' SAG 180 Lathe is currently for sale on auction. SAG 14 Lathe Operations, Maintenance & Parts Manual This Manual Includes: Inventory # G-114A Installation Maintenance Operation Parts Electrical Diagram This manual is in English, French, Italian, And German. Graziano Sag 14 Manual 4,0/5 3151 reviews
